flexion
Advanced
Sensor Unit
The best documentation
In addition to the features of its counterpart, the Advanced Sensor Unit comes with a remote control unit that initiates photo or video recordings with a simple hand gesture, providing greater convenience during treatment.

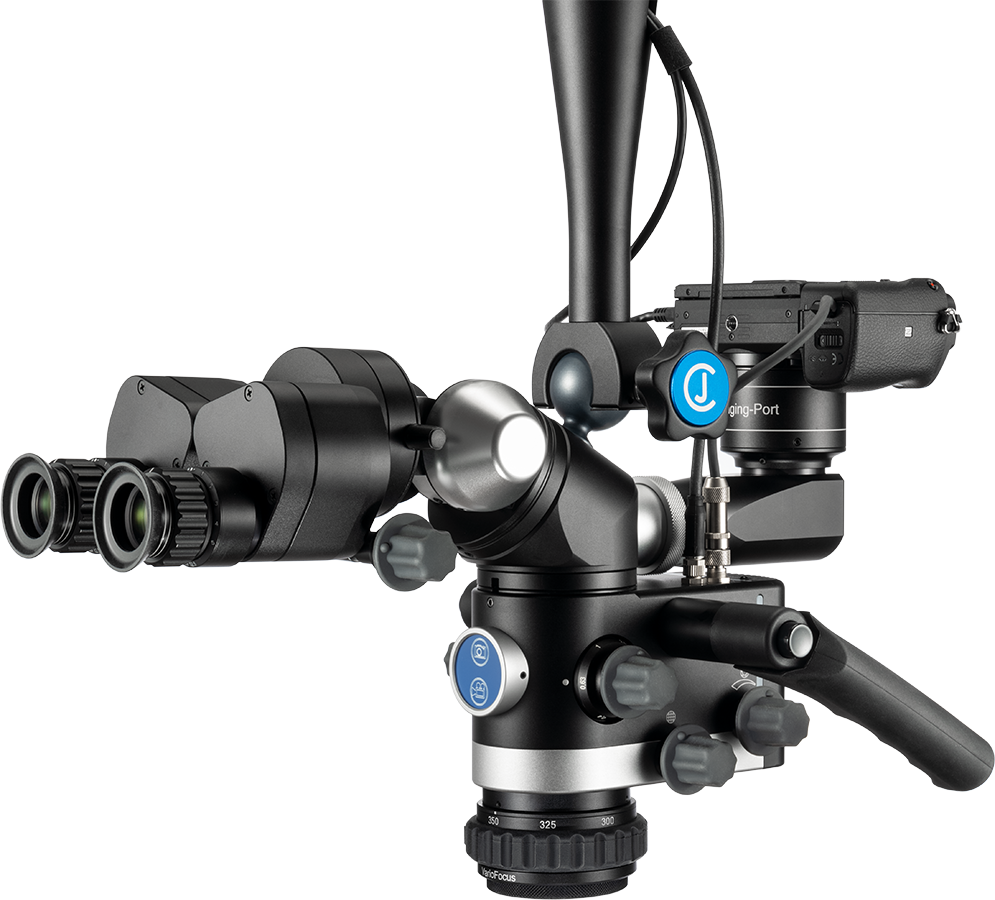

flexion Advanced Sensor Unit
The best documentation
In addition to the features of its counterpart, the Advanced Sensor Unit comes with a remote control unit that initiates photo or video recordings with a simple hand gesture, providing greater convenience during treatment.
Flexible and Customized
Flexion – The name says it all, including various mounting options. In addition to the dimensions shown here, CJ-Optik also offers customized heights and lengths for all tripod components to adapt the mounting to the facilities in the best possible way. Furthermore, the components are interchangeable (e.g., when switching to ceiling mounting).
SPECS
- Magnification system
- 5-step magnification with semi-apochromatic lens system 0.4 / 0.63 / 1.01 / 1.6/ 2.5x
- Eyepieces
-
Wide-field eyepieces WF 12.5x
Wide-field eyepieces WF 12.5x with reticle *
- Tube
-
F = 170 mm semi-apochromatic / 180° inclinable
F = 200 mm *
- Stereo Base
- 24 mm for enhanced 3D vision
- Focus system
-
VarioFocus2 200 - 350 mm / Plan-APO / protective glass *
VarioFocus3 210 - 470 mm / Plan-APO / protective glass *
VarioFocus with splash protection for the objective lens *
- Lighting system
- High-power, fanless LED 5,500 K / 65,000 h lifespan
- Filter
- Can choose any
- Movement
- MonoGlobe, Axial Movement 355°
- Handles
- Ergonomic handles with 360° rotation
- Asepsia
- Set of sterilizable caps for asepsis
- Documentation
-
Sensor Unit controls for video and image
Beam splitter 50:50 4K-Imaging-Port / FullFrame *
HD-Imaging-Port / APS-C *
Phone-Imaging-Port / Smartphones *
MicVision App (iOS and Android) *
MicroVis Software *
- Power Supply
- Charge adapter: Works with all Sony Alpha models and smartphones.
- Assembly
- Floor, wall, mobile, ceiling, table/laboratory.
