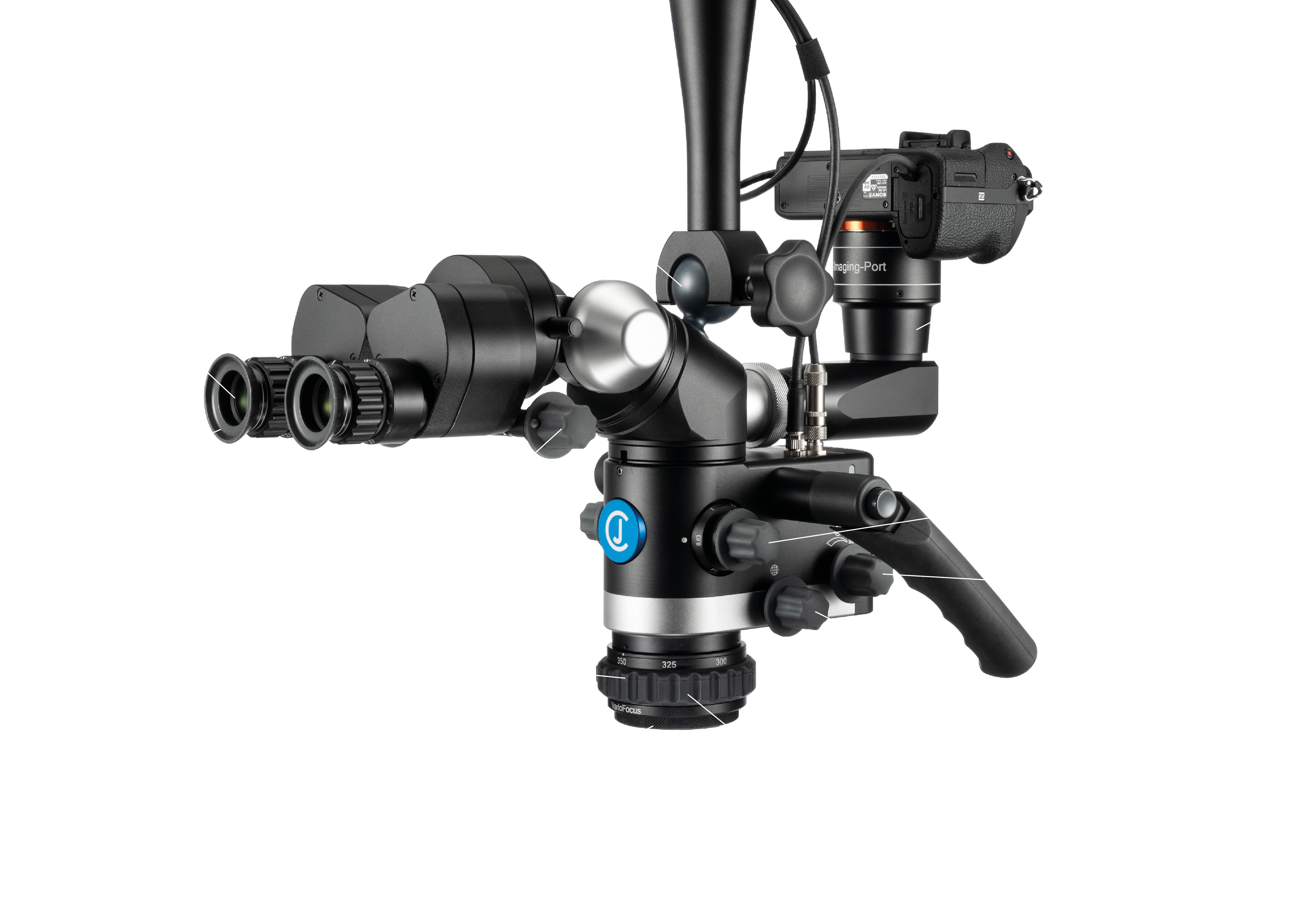

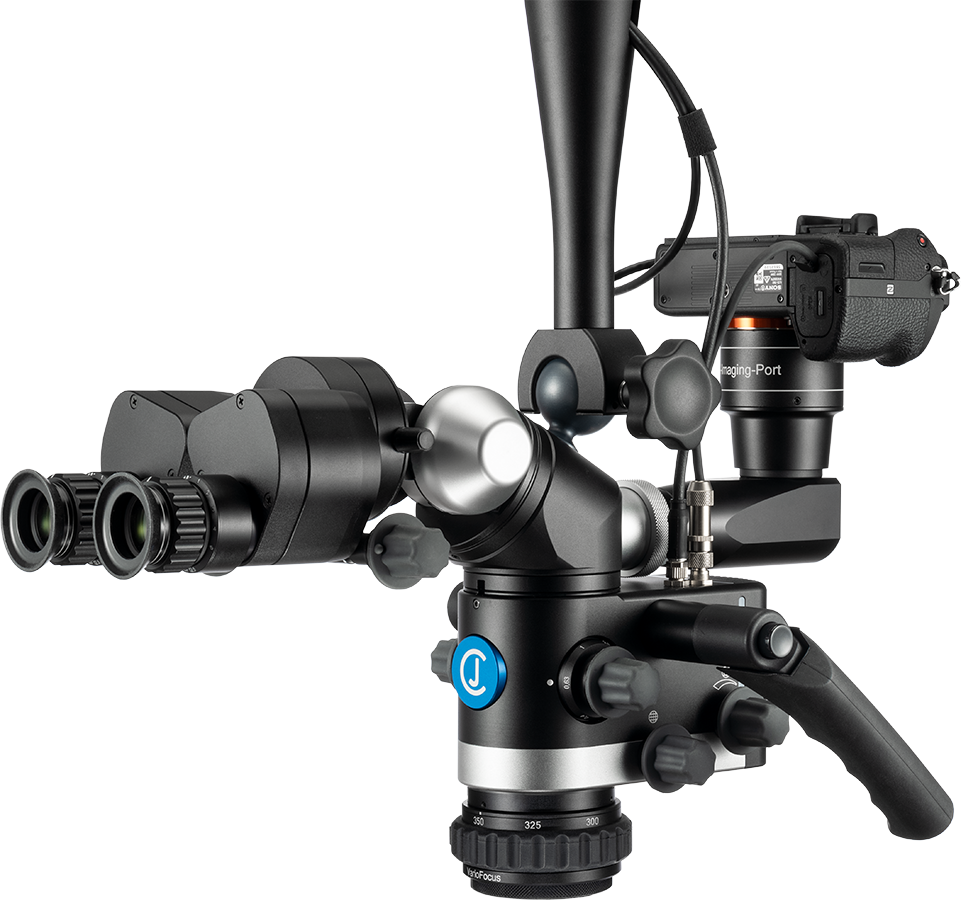

Flexion
Advanced
The Flexion Advanced microscope impresses with its excellent optics and a wide range of functions. Well-thought-out ergonomics ensure an upright treatment position and a relaxed posture.
To satisfy modern documentation needs, there are several image connections available for full-frame cameras, APS-C FullFrame, and smartphones.
flexion advanced
The Flexion Advanced microscope impresses with its excellent optics and a wide range of functions. Well-thought-out ergonomics ensure an upright treatment position and a relaxed posture.
To satisfy modern documentation needs, there are several image connections available for full-frame cameras, APS-C FullFrame, and smartphones
Flexible and Customized
Flexion – The name says it all, including various mounting options. In addition to the dimensions shown here, CJ-Optik also offers customized heights and lengths for all tripod components to adapt the mounting to the facilities in the best possible way. Furthermore, the components are interchangeable (e.g., when switching to ceiling mounting).
SPECS
- Magnification system
- 5-step magnification with semi-apochromatic lens system 0.4 / 0.63 / 1.01 / 1.6/ 2.5x
- Eyepieces
-
Wide-field eyepieces WF 12.5x
Wide-field eyepieces WF 12.5x with reticle *
- Tubo
- 170 mm semi-apochromatic / 180° inclinable
- Stereo Base
- 24 mm for enhanced 3D vision
- Sistema de enfoque
-
VarioFocus2 200 - 350 mm / Plan-APO / protective glass *
VarioFocus3 210 - 470 mm / Plan-APO / protective glass *
VarioFocus with splash protection for the objective lens *
- Lighting system
-
High-power, fanless LED 5,500 K / 65,000 h lifespan
Adjustable intensity up to 100,000 Lux and focus size aperture.
- Filter
- Can choose between green or orange filter
- Movement
- MonoGlobe, Axial Movement 355°
- Handles
- Ergonomic handles with 360° rotation
- Asepsis
- 1x sterilizable cap for asepsis
- Documentación
-
Beam splitter 50:50 4K-Imaging-Port / FullFrame *
HD-Imaging-Port / APS-C *
Phone-Imaging-Port / Smartphones *
MicVision App (iOS and Android) *
MicroVis Software *
- Power Supply
- Charge adapter: Works with all Sony Alpha models and smartphones.
- Assembly
- Floor, wall, mobile, ceiling, table/laboratory.
Specialized Consultation
Installation
Training
- We engage in close and collaborative efforts with you to create the ideal microscope setup, precisely tailored to meet your specific requirements.
- Our team of optical engineers has meticulously designed each component to ensure that the refractive index, light dispersion, transmission, and anti-reflective treatment are optimal.
- Our optical systems are backed by rigorous tests of quality and durability, ensuring reliability and performance.
- Our installation adapts to your needs in a flexible and personalized manner.
- We offer ceiling, floor, wall, table/laboratory, and mobile solutions.
- We provide custom heights and lengths for all tripod components to tailor the installation to your facilities in the best possible way. Additionally, the components are interchangeable (for example, when transitioning from floor mounting to ceiling mounting).
- We provide detailed explanations about the key elements of your microscope. This will help you understand how they work and how they can optimize your observations.
- We are here to offer ongoing support, address any questions you may have, and assist you in maintaining your equipment in optimal condition.
- In addition to optimizing your current observations, we encourage you to explore new applications and techniques that can enrich your work.
Specialized Consultation
- We engage in close and collaborative efforts with you to create the ideal microscope setup, precisely tailored to meet your specific requirements.
- Our team of optical engineers has meticulously designed each component to ensure that the refractive index, light dispersion, transmission, and anti-reflective treatment are optimal.
- Our optical systems are backed by rigorous tests of quality and durability, ensuring reliability and performance.
Installation
- Our installation adapts to your needs in a flexible and personalized manner.
- We offer ceiling, floor, wall, table/laboratory, and mobile solutions.
- We provide custom heights and lengths for all tripod components to tailor the installation to your facilities in the best possible way. Additionally, the components are interchangeable (for example, when transitioning from floor mounting to ceiling mounting).
Training
- We provide detailed explanations about the key elements of your microscope. This will help you understand how they work and how they can optimize your observations.
- We are here to offer ongoing support, address any questions you may have, and assist you in maintaining your equipment in optimal condition.
- In addition to optimizing your current observations, we encourage you to explore new applications and techniques that can enrich your work.
